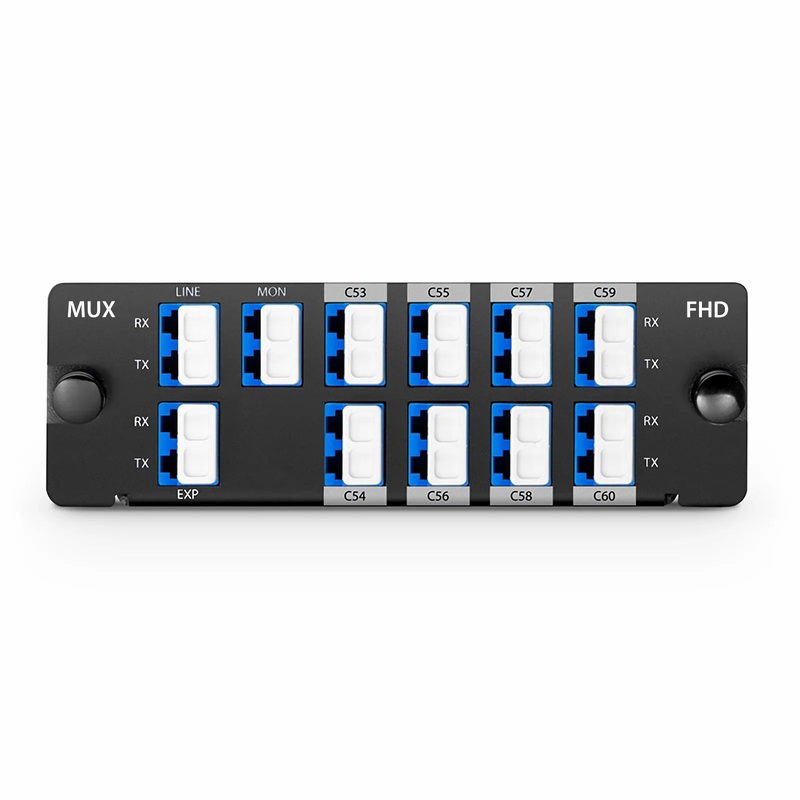

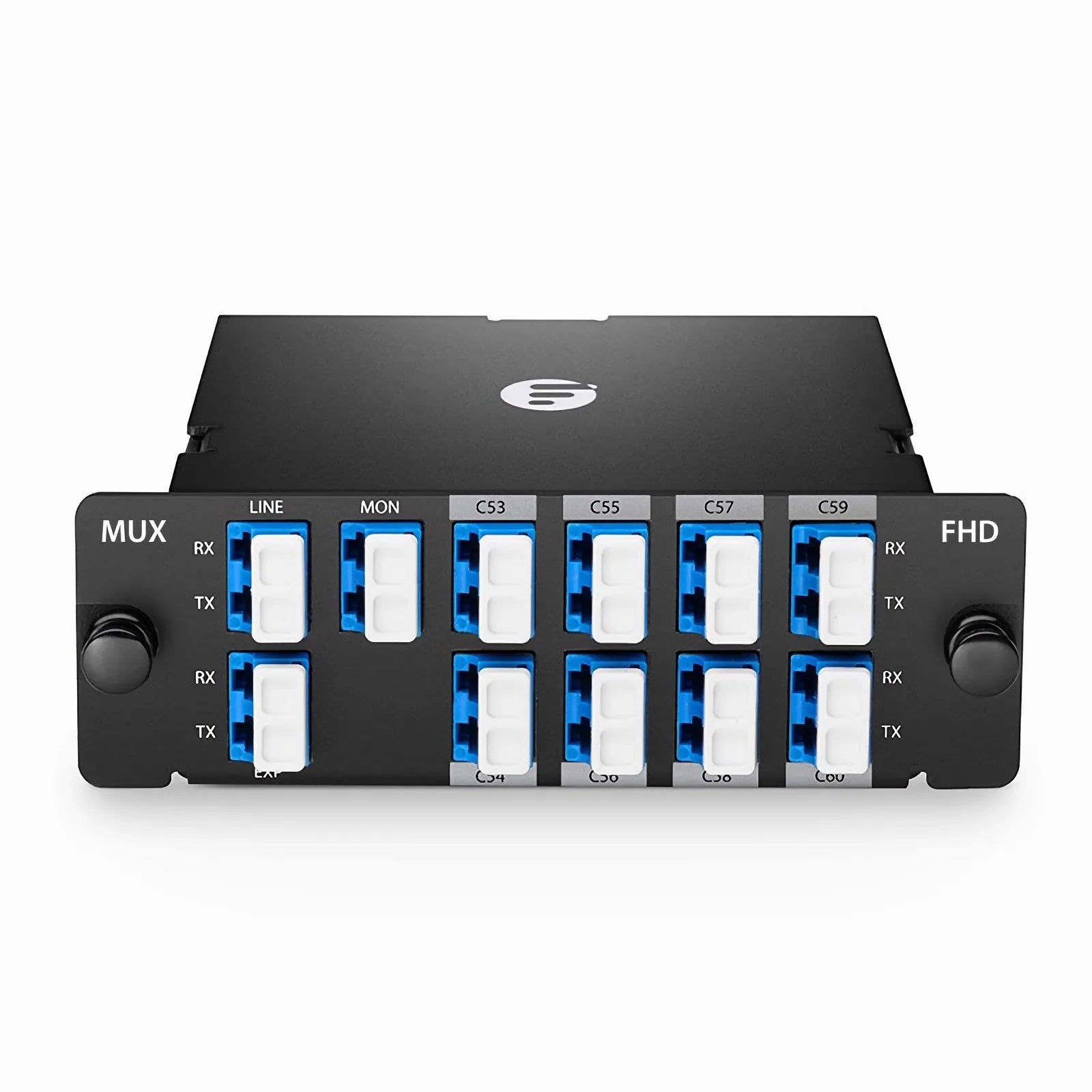

8 Channels DWDM Mux Demux, 100GHz C53-C60, with Monitor and Expansion Port, 2.4dB Typical IL, LC/UPC, Dual Fiber, High Density, FHDâ„¢ Plug-in Module
C53-C60, Duplex, 2.4dBFHD
Dhs. 1,905.00
Sale price
Dhs. 1,905.00
Regular price
Dhs. 2,857.00
Skip to product information
Description

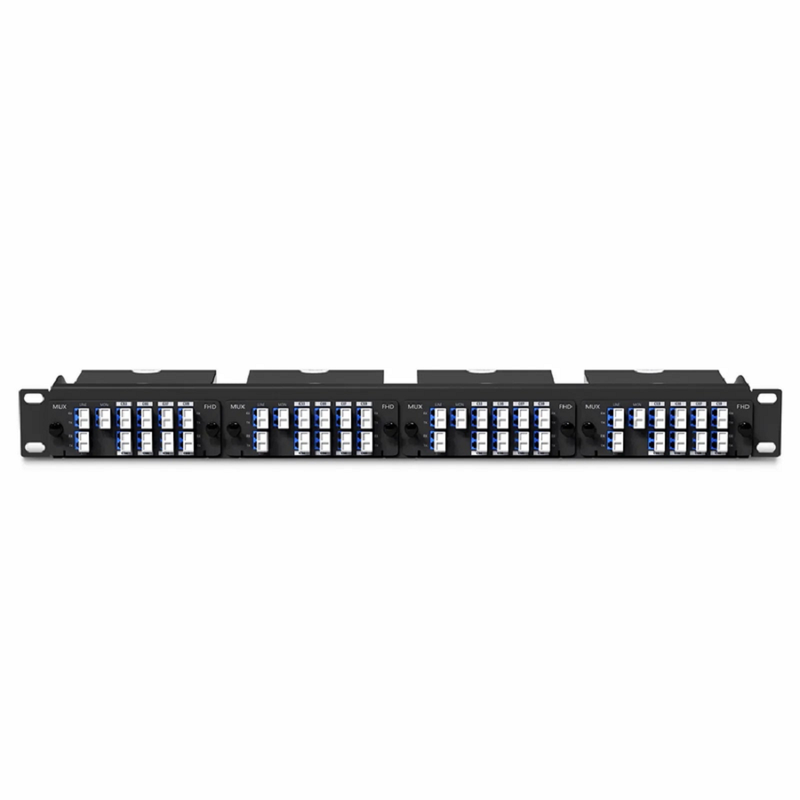

The 8CH Mux Demux, based on TFF (Thin Film Filter), is a passive DWDM device featuring high density, low loss, and long-haul transmission suitability. It is integrated with a monitor port and an expansion port. The 1% monitor port allows easy troubleshooting without downtime and the expansion port can be used to add additional channels, providing a cost-effective and easily expandable solution. In addition, this unit can act as either a multiplexer or de-multiplexer (Mux/Demux). It combines 8-channel of DWDM wavelengths into a composite signal and separates the combined DWDM signal into 8-channel individual wavelengths over a pair of single-mode optical fiber. In accordance with the ITU-T G.694.1, it maximizes the capacity of the C-band range. Designed for maximum configuration flexibility, the DWDM Mux Demux can plug directly into the FHD® chassis, each module occupying one slot.
8 Channels DWDM Mux Demux, 100GHz C53-C60, with Monitor and Expansion Port, 2.4dB Typical IL, LC/UPC, Dual Fiber, High Density, FHDâ„¢ Plug-in Module
Dhs. 1,905.00
Sale price
Dhs. 1,905.00
Regular price
Dhs. 2,857.00
The 8CH Mux Demux, based on TFF (Thin Film Filter), is a passive DWDM device featuring high density, low loss, and long-haul transmission suitability. It is integrated with a monitor port and an expansion port. The 1% monitor port allows easy troubleshooting without downtime and the expansion port can be used to add additional channels, providing a cost-effective and easily expandable solution. In addition, this unit can act as either a multiplexer or de-multiplexer (Mux/Demux). It combines 8-channel of DWDM wavelengths into a composite signal and separates the combined DWDM signal into 8-channel individual wavelengths over a pair of single-mode optical fiber. In accordance with the ITU-T G.694.1, it maximizes the capacity of the C-band range. Designed for maximum configuration flexibility, the DWDM Mux Demux can plug directly into the FHD® chassis, each module occupying one slot.
